Sphere-Based Collision Support

TeleopXR uses sphere-based collision checking to provide high-performance, differentiable signed distance fields (SDF) for Inverse Kinematics. This approach is superior to primitive mesh collision (like boxes or capsules) for complex robot geometries as it allows the optimizer to smoothly "push" links away from each other and the world.

1. Generating Collision Data

The scripts/configure_sphere_collision.py utility is an interactive GUI built with Viser that helps you generate a collision.json file for your robot.

Running the Script

Run the script specifying your robot class (as registered in entry points or module path):

python scripts/configure_sphere_collision.py --robot-class "my_robot"

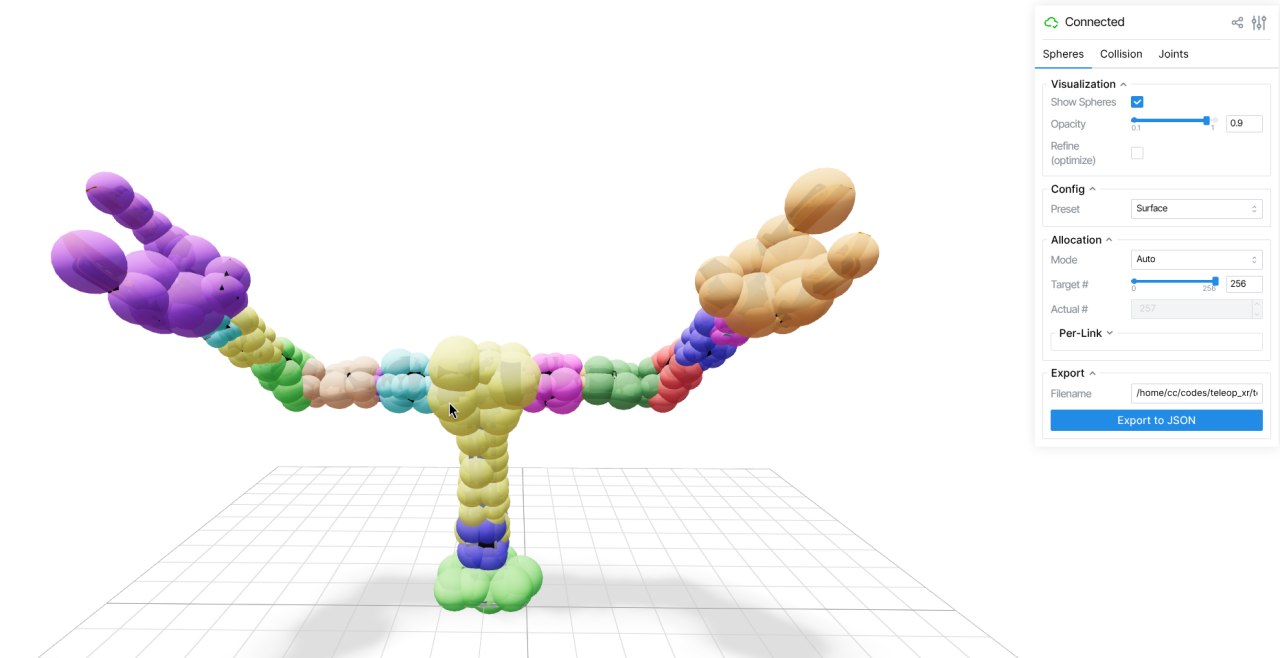

Phase 1: Sphere Generation

In the Spheres tab, you configure the volumetric approximation of your robot:

1. Allocation: Choose between Auto (distributes spheres based on volume) or Manual (fine-tune per-link budgets).
2. Spherize: Run the generation. This places spheres to cover the collision meshes of each link.
3. Refine: (Optional) Run the optimization to tighten the sphere coverage and minimize overlaps.

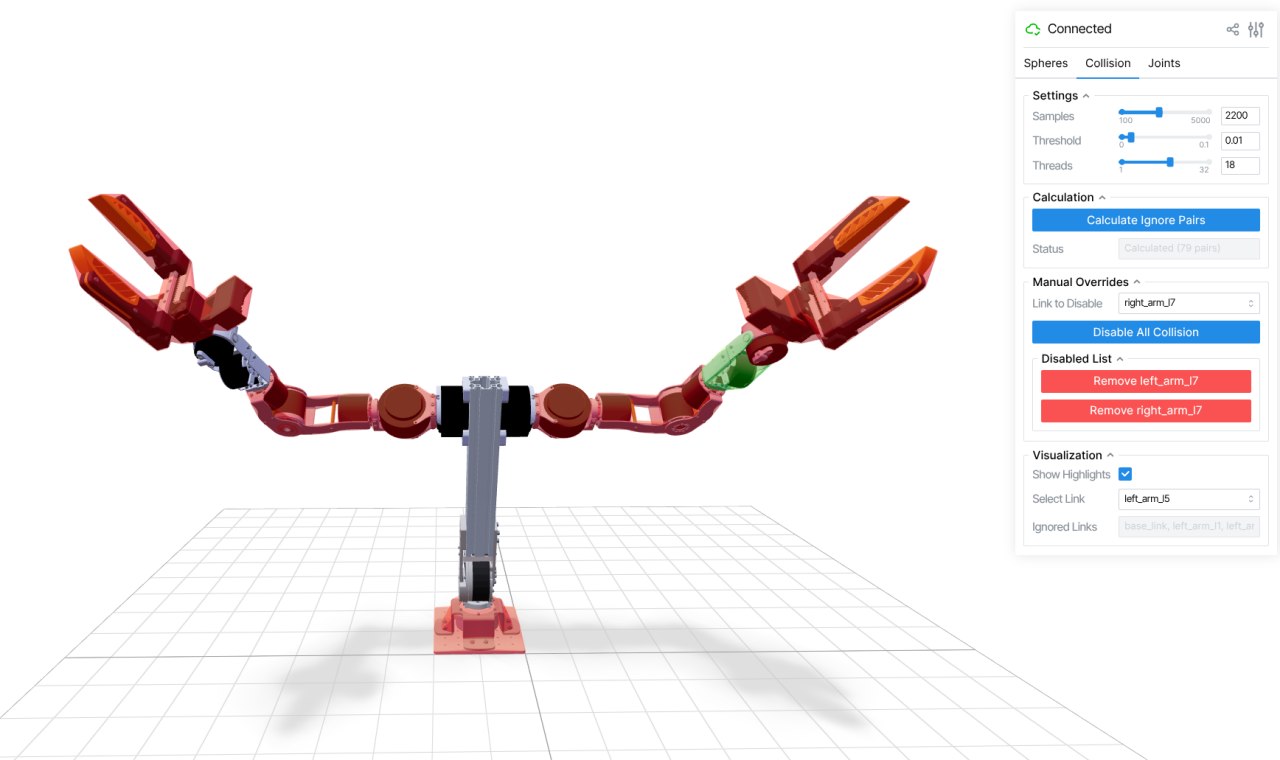

Phase 2: Collision Pair Calculation

Once spheres are generated, move to the Collision tab to identify which link pairs should be checked for collision.

1. Settings:
   • Samples: Number of random configurations to test (default 1000).
   • Threshold: Minimum clearance margin (default 0.01m).
   • Threads: Number of parallel processes for calculation.
2. Calculation: Click Calculate Ignore Pairs. The script identifies pairs that:
   • Always collide: Structural components or adjacent links that provide no useful signal.
   • Never collide: Links that, within their joint limits, never come close enough to touch.
3. Manual Overrides: You can manually disable collision checking for specific links if you know they are safe (e.g., small decorative parts).

Export

Enter the desired filename (default collision.json) and click Export to JSON. Save this file in your robot's asset directory.

---

2. Integrating with Robot Class

To use the generated data in the IK solver, update your robot class (inheriting from BaseRobot) to load and pass the data to pyroki.

Implementation Example (TeaArmRobot)

The following pattern is used in teleop_xr/ik/robots/teaarm.py:

import os
import json
import pyroki as pk
from teleop_xr.ik.robot import BaseRobot

class MyRobot(BaseRobot):
    def __init__(self, urdf_string: str | None = None, **kwargs):
        # ... load URDF ...

        # Load sphere and ignore pair data
        collision_data = self._load_collision_data()

        if collision_data is not None:
            sphere_decomposition, ignore_pairs = collision_data
            self.robot_coll = pk.collision.RobotCollision.from_sphere_decomposition(
                sphere_decomposition,
                urdf,
                user_ignore_pairs=ignore_pairs,
                ignore_immediate_adjacents=True,
            )
        else:
            # Fallback to standard URDF primitive collision
            self.robot_coll = pk.collision.RobotCollision.from_urdf(urdf)

    @staticmethod
    def _load_collision_data():
        """Helper to load collision.json or fallback to sphere.json"""
        import os, json
        # Adjust path to your asset directory
        asset_dir = os.path.join(
            os.path.dirname(os.path.abspath(__file__)),
            "assets",
            "my_robot"
        )

        collision_path = os.path.join(asset_dir, "collision.json")
        sphere_path = os.path.join(asset_dir, "sphere.json")

        try:
            if os.path.exists(collision_path):
                with open(collision_path, "r") as f:
                    data = json.load(f)
                spheres = data["spheres"]
                ignore_pairs = tuple(
                    tuple(pair) for pair in data.get("collision_ignore_pairs", [])
                )
                return spheres, ignore_pairs

            if os.path.exists(sphere_path):
                with open(sphere_path, "r") as f:
                    data = json.load(f)
                return data, ()

        except (json.JSONDecodeError, IOError, KeyError):
            pass

        return None

Key Components

• from_sphere_decomposition: Tells pyroki to use your custom spheres for SDF calculation.
• user_ignore_pairs: Provides the list of links to exclude from collision checks, significantly improving performance.
• ignore_immediate_adjacents: When True, automatically ignores parent-child link pairs defined in the URDF.
